12 kW Inline Heater

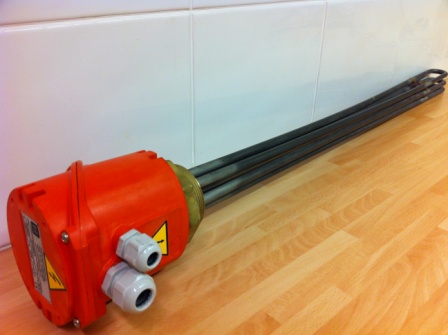

Description Built around our stock ii12 industrial immersion heater, our 12kW inline heater is – 415v –  ii12 Industrial Immersion Heater (click to see specs). Tube Material AISI304. “SCHEDULE 10” 3.10mm wall. Approx 680mm Long Vessel. Approx. 785mm Length Including Terminal Box. Fittings and other water contact components may be AISI304 or AISI316. Can be AISI316 for additional cost. Call 01827 215684 to discuss. Inulated – 104mm O/D ±5. Uninsulated – 89mm O/D ±5. 1″ BSP In/ Outlet (Side and Base) most common, but can be ¾”, 1¼” and 1½” if you prefer. Pressure Test on request – 6 bar? Available Option – Longer tube & U bent elements with baffles including a frame to give rigidity of the baffles. Call 01827 215684 to discuss. Please be aware, we cannot legislate for high mineral content in our UK water. Provision needs to be made to schedule cleaning and maintenance, as mineral content / scale build up / corrosion is not covered under any warranty. To discus your needs, call Jamie: 01827 215684 or 07897 246779 or email: [email protected] ###Please be aware, what we are selling is heavy duty, industrial. Not to be confused with a Willis Heater, which can be purchased here for the bargain price of £195, allegedly!### BACK to Inline Heaters main page.
